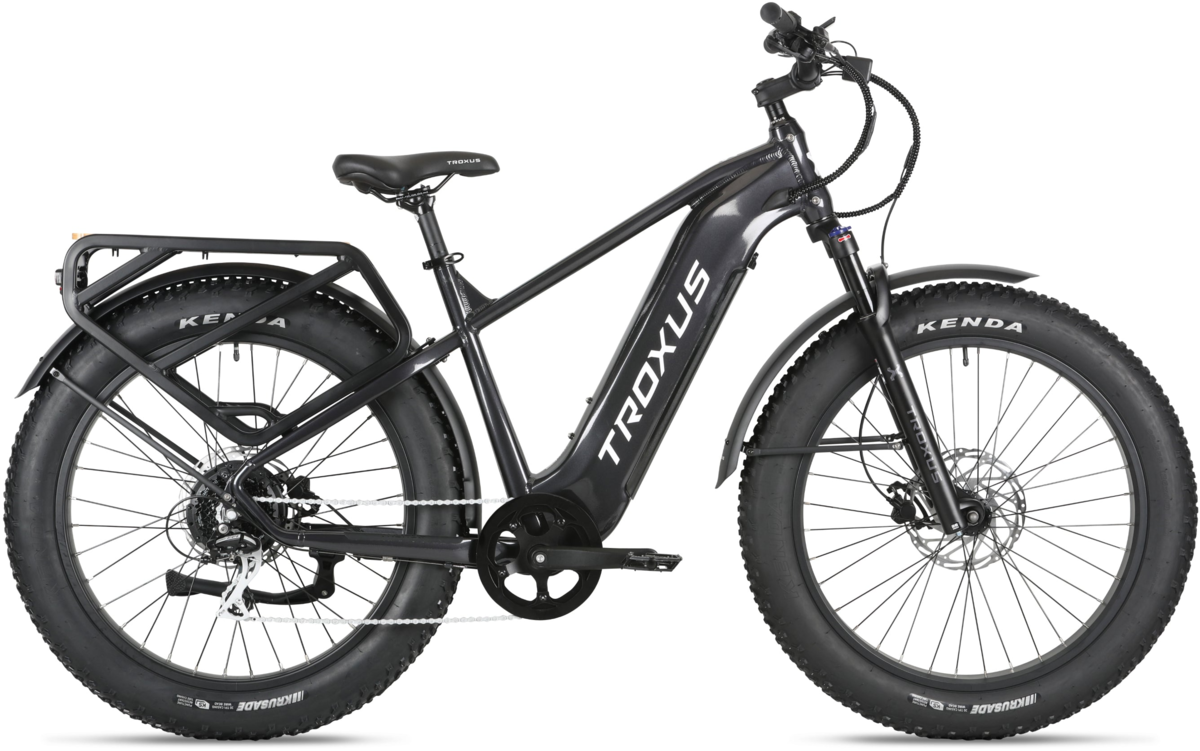

Troxus Explorer Plus
$2,299.99
Details
The upgraded eXplorer Plus is the ultimate daily commuter, and weekend adventure companion. With new color screen that allows easy access to all your ride data, and the ability to select between cadence or torque sensors to tune your ride experience. New lighting system is brighter, includes turn signals at the rear, and even has daytime flashing mode for enhanced safety and visibility.
- Maximum Load: 400 lbs
- Recommend Height: 5'8" - 6'4"
| Model | Step-Over |
|---|---|
| Frame Size | Large / 20" |
| Wheel Size | 26x4.0" |
| Seat Tube Length | 500 |
| Seat Tube Angle | 71.5° |
| Head Tube Length | 160 |
| Head Tube Angle | 68° |
| Effective Top Tube Length | 625 |
| Bottom Bracket Height | 305 |
| Bottom Bracket Drop | 70 |
| Chainstay Length | 490 |
| Fork Offset | 46 |
| Wheelbase | 1173 |
| Frame Reach | 387 |
| Frame Stack | 691 |
| Fork Travel | 90 |
| Fork Height | 525 |
Specs
| Frame | 6061-T6 Aluminum Step-Thru Frame |
|---|---|
| Fork | Front Suspension Fork, 90mm Travel |
| Rims |
Front: Alloy Single Wall Front , 36H, 26"x4.0", w/ Eyelets Rear: Double Wall Rear, 36H, 26"x4.0", w/ Eyelets |
| Hubs |
Front: Alloy, 36H, 135mm, 3/8" Axle Rear: Bafang 48V 750W/ 28 MPH. 86Nm |
| Spokes | Stainless 13G/12G |
| Tires | KENDA 26"x4.0", w/ Anti-Puncture K-Shield |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm |
| Shifters | Shimano 8-Speed |
| Rear Derailleur | Shimano RD-M310-L, Altus, 8-Speed |
| Cassette/Freewheel | Shimano 8-Speed, 12-32T |
| Chain | KMC® 1/2"x3/32" |
| Brakes | Tektro Hydraulic, w/ Brake Sensors |
| Rotors | 203mm / 203mm |
| Handlebars | Zoom Alloy 31.8mmx700mm Wide |
| Tape/Grips | Ergonomic Comfort |
| Stem | Zoom Alloy, Threadless, 1-1/8", Ext. 75mm, 28.6mm, 7-Degree Rise |
| Headset | Threadless, Locking Internal 1-1/8" |
| Seatpost | Zoom Alloy, 30.9x350mm, Adjustable |
| Saddle | Troxus Comfort |
| Pedals | 9/16? Alloy Platform |
| Accessories & Extras | 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals |
| Motor | Bafang 48V/750W Hub-Drive Motor, 86Nm Max. Torque |
| Battery | UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells |
| Controller/Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging |
| Charger | 3A / 100-240V Input / 54.6V Output |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Charcoal / Large / 26-inch | 850063567237 | 10870100215 | TRO34178768L |
