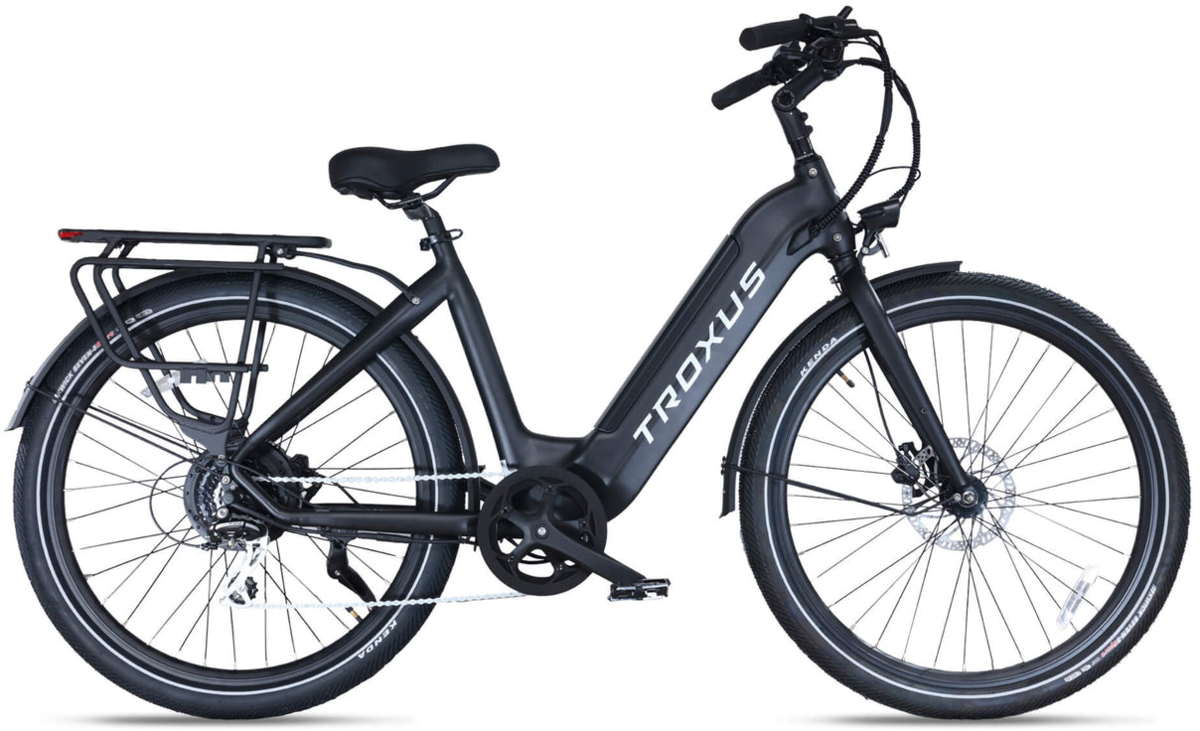

Troxus Trax Rigid 500/15
$1,799.99
Details
The Trax Rigid is the ideal bike for commuters and city explorers alike. With its 500W rear hub motor and an lightweight aluminum fork, the Trax Rigid 15/500 is sure to fit whatever needs you have, and most importantly, looks stylish while doing it.
| Frame Size | Small | Medium | Large |
|---|---|---|---|
| Wheel size | 27.5" x 2.2" | 27.5" x 2.2" | 27.5" x 2.2" |
| Seat tube (mm) | 430 | 490 | 530 |
| Seat tube angle | 70° | 70° | 70° |
| Head tube length (mm) | 150 | 150 | 150 |
| Head angle | 69° | 69° | 69° |
| Effective top tube (mm) | 622.5 | 622.5 | 630.5 |
| Bottom bracket height (mm) | 296 | 296 | 296 |
| Bottom bracket drop (mm) | 55 | 55 | 55 |
| Chainstay length (mm) | 480 | 480 | 480 |
| Offset (mm) | 42 | 42 | 42 |
| Wheelbase (mm) | 1134.5 | 1134.5 | 1142.6 |
| Trail (mm) | 89.75 | 89.75 | 89.75 |
| Frame Reach (mm) | 414.6 | 414.6 | 422.65 |
| Frame Stack (mm) | 571 | 571 | 571 |
Specs
| Frame | 6061 Aluminum Alloy Frame alloy |
|---|---|
| Rims | Powercir Double Wall Aluminum 36h Front & Rear |
| Spokes |
Front wheel: black stainless 13 Gauge Rear wheel: black stainless 12 Gauge |
| Tires | Kenda 27.5"x2.2" w/ Thorn proof tubes, Reflective Sidewalls |
| Bottom Bracket | Gineyea Square Taper, Sealed |
| Crankset | Wheel Top 170mm w/46T, 3D forged alloy, Strong and rigid |
| Shifters | 8 Speed |
| Rear Derailleur | Shimano 8-speed Derailleur System |
| Cassette/Freewheel | Shimano12-32T, 8 Speed Cassette |
| Chain | KMC chain, top rust prevention EPT |
| Brakes | Tektro Hydraulic Brake |
| Handlebars | Zoom Aluminum 31.8 with 15 Degree Sweptback |
| Tape/Grips | Ergonomic Comfort |
| Stem | Zoom Adjustable Stem, Threadless 31.8mm |
| Seatpost | Forged Alloy, 30.9*350mm, 2 Bolt Clamp |
| Saddle | Troxus |
| Pedals | 9/16 Alloy Platform with CPSC/BS reflectors |
| Accessories & Extras | High intensity front and rear brake light |
| Motor | Bafang 48V/750W Hub-Drive Motor |
| Battery | Samsung 48V/15-30A Battery(720Wh-1440Wh),5000mAh single cell capacity |
| Controller/Display | Colorful screen with USB charging, LCD Smart Easy Read Display with Backlight, Waterproof IP67 |
| Charger | MDN 54.6V 2A smart charger; |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black / Small | 850049168038 | 10870100105 | TRO40999697D |
| Black / Medium | 850049168045 | 10870100111 | TRO41771300D |
| Grey / Large | 850049168021 | 10870100107 | TRO39275698D |
